KEMI – Kemiflex

KEMIFLEX is an inner tube of helically convoluted PTFE with an outer cover of 304 stainless steel braid, giving good flexibility and kink resistance and is manufactured from top
quality (Polytetrafluoroethylene) PTFE resin, giving a translucent
appearance.

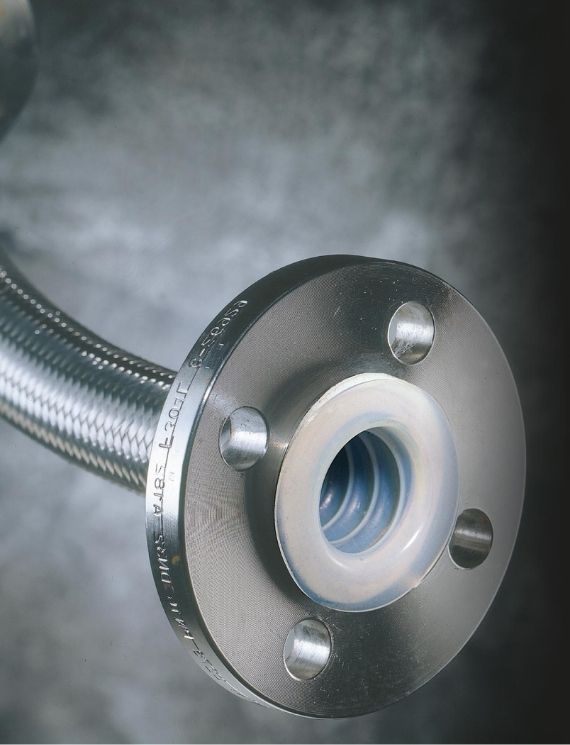

KEMIFLEX can be fitted with crimped fittings for high pressures or with cuffed ends for low-pressure applications. If required, the PTFE innercore can be extended through the fitting and fleared as shown (pict. 1). This will protect the fitting from internal corrosion.
The design also eliminates potential entrapment areas and promotes smooth flow of materials through this area. Rounded convolutions and the non-stick property of PTFE coupled with a smooth uninterrupted flow through the fitting make the hose self-cleaning and prevent bacteria traps.
An antistatic version is available (KEMIFLEX K).Other material for braiding are available on request like S.S. 316,polyester etc. For applications with full vacuum it is available a special version with helical spring on the external convoluted PTFE (KEMIFLEX V).
