PTFE convoluted hose – CLWB
PTFE convoluted hose – CLWB

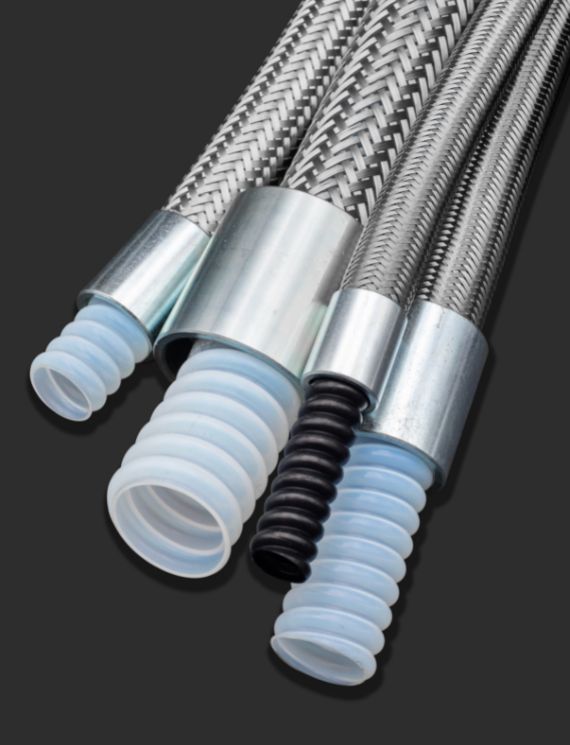

CLWB PTFE convoluted hose can be used in different applications. They are designed for flow of chemically and food products, for the industrial process like pure water or dangerous wastes and in various applications in the automotive and industrial fields. This PTFE convoluted hose are also designed to be used with a range of hydraulics fittings. Ferrules are available according to the crimping table.
| Category | Tubes |
|---|---|
| Applications | Pharmaceutica Chemistry |
| Industrial |
Description
This PTFE convoluted hose are also designed to be used with a range of hydraulics fittings. Ferrules are available according to the crimping table.
Temperature and reinforcement
Temperature
Temperature – 70 + 260° C depending on the working pressure.
Please consult our technical data sheet. At elevated temperatures the working pressure is reduced. Please ask for details
Reinforcement
STD: one stainless steel braid AISI 304
Conductive or anti-implosion with spiral reinforcement version also available.
Silicone coating also available.
Specifications
| Category | Tubes |
|---|---|
| Applications | Corrosive liquid transfer and pharmaceutical and food applications |
| Compressed air, oils and fuels in automotive and nautical applications | |
| Industrial vehicles braking systems | |
| Plastic moulding and tyres production lines | |
| Aggressive liquids filling lines | |
| Gas and chlorine tanks filling lines | |
| Discharging compressor line | |
| Wires and electrical cables protections | |
| Advantages | Extreme flexibility |
| High ageing behaviour | |
| Chemical inertness | |
| Low maintenance | |
