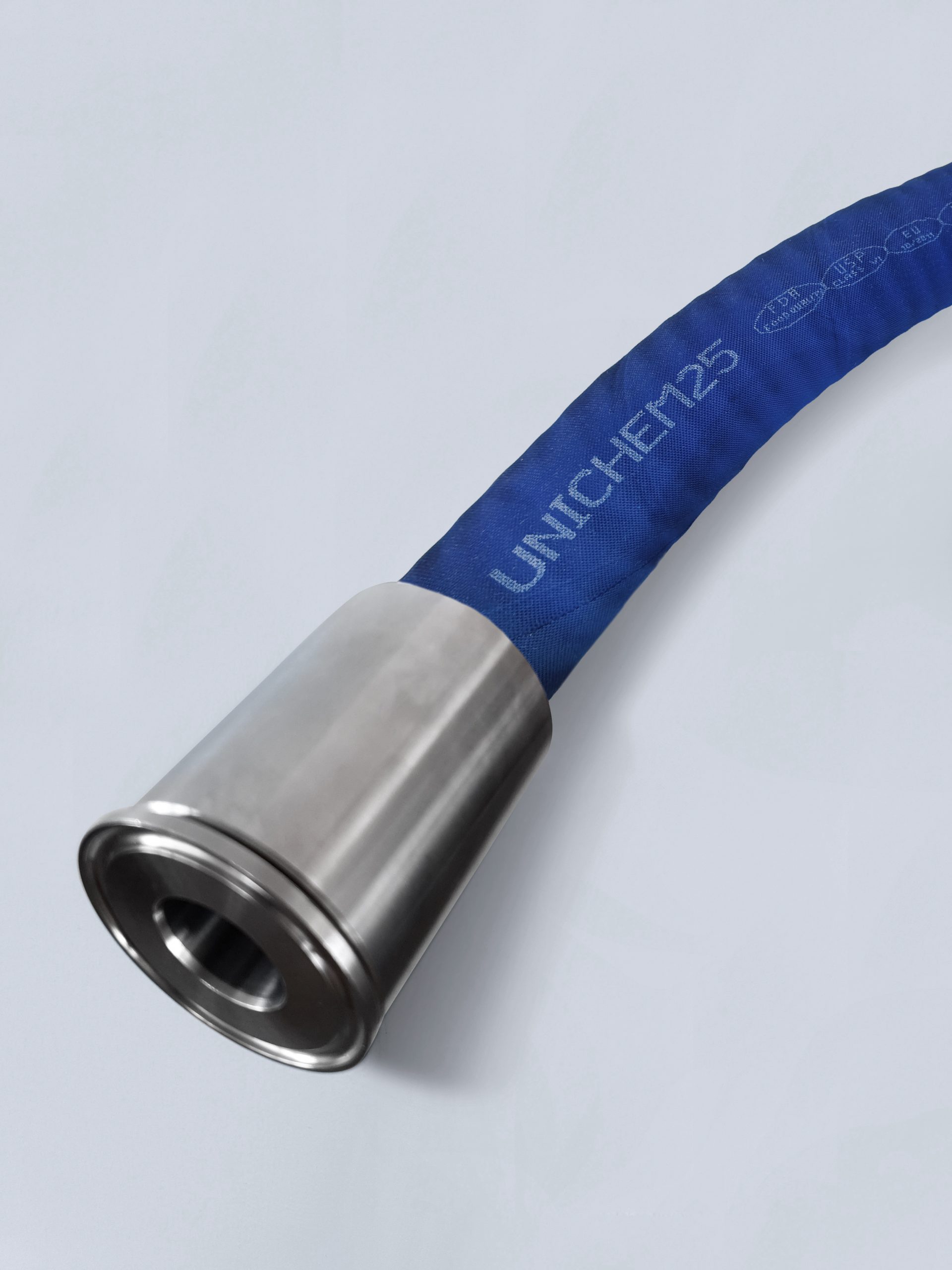

Unichem

Unichem is produced from PTFE, which is renowned as one of the most chemically resistant materials known. The hose incorporates a smoothbore inside and convoluted outside design. Unichem is designed to fulfil the requirements for use in the Industrial, Chemical and Product Transfer Manufacturing, Storage and Transportation Industries. The hose design consists of a robust PTFE hose core a grade 304 stainless steel braid and a EPDM rubber cover. Engineered into the hose, between the stainless steel braid and the rubber cover is a steel helical wire, this design gives Unichem unparalleled flowrate and cleanability, incredible kink and vacuum resistance. Unichem, a hose that will operate in the most severe manufacturing and physical conditions.

DOWNLOAD UNICHEM DATA SHEET



STRUCTURE

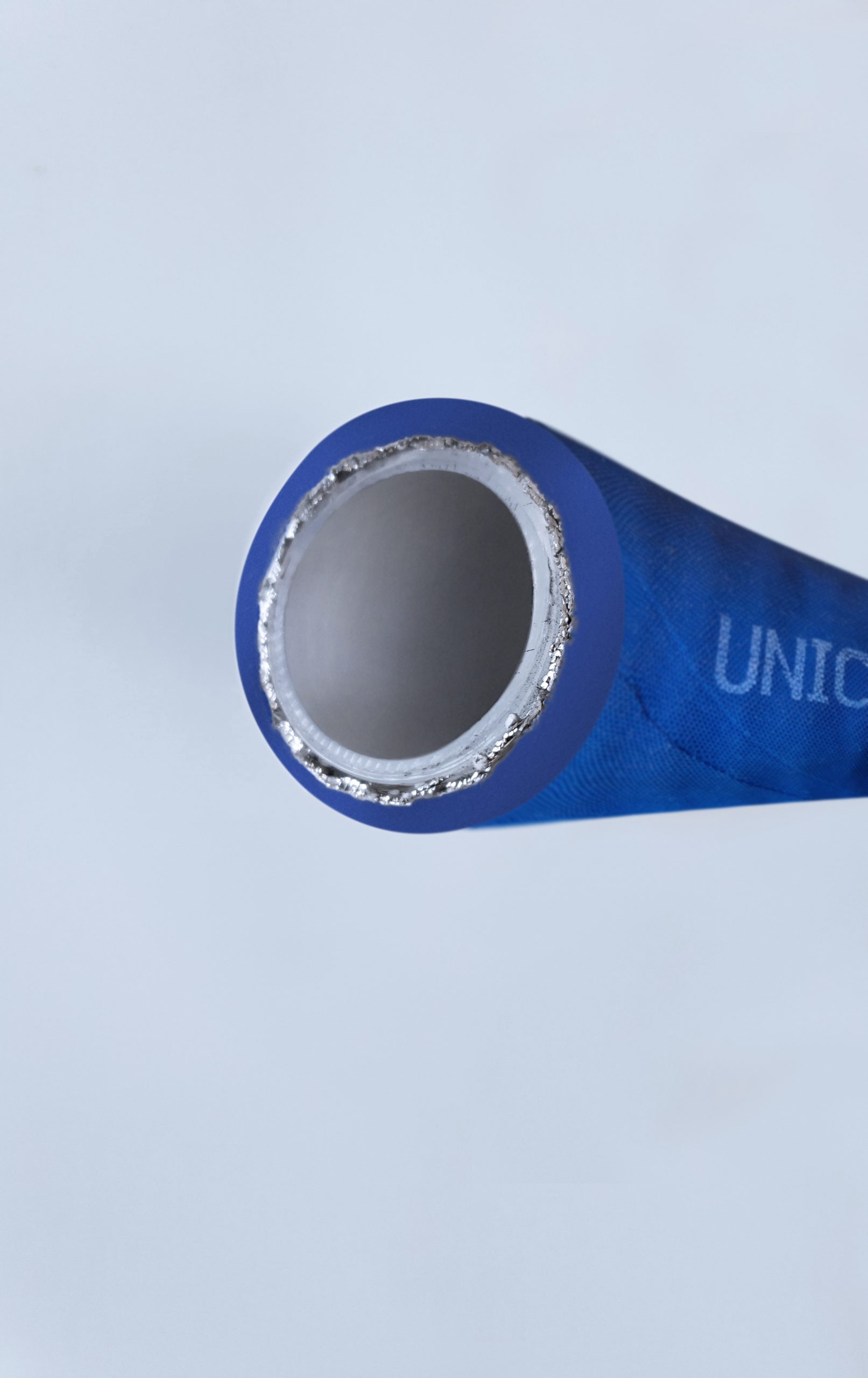

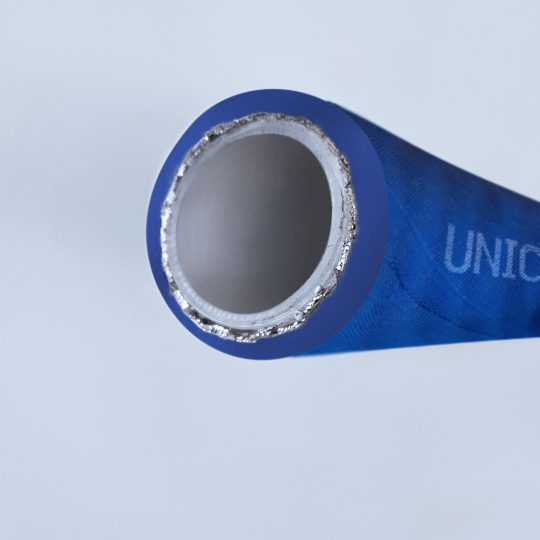

The inner tube is produced from PTFE, the design is smoothbore inside convoluted outside. Unichem is reinforced with grade 304 stainless steel braid and the cover is EPDM rubber. Incorporated between the braid and the EPDM cover is a helical wire that ensures kink resistance

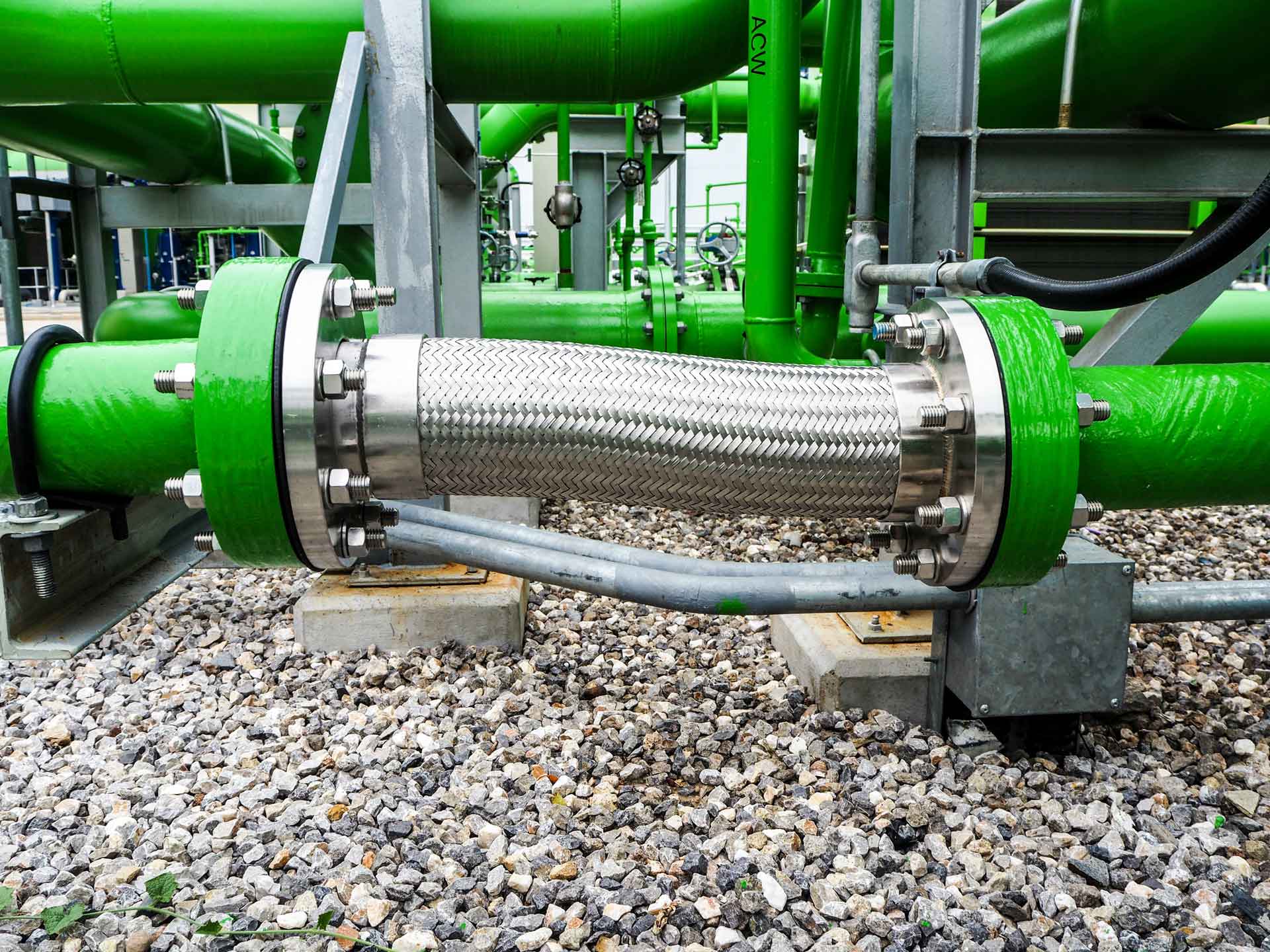

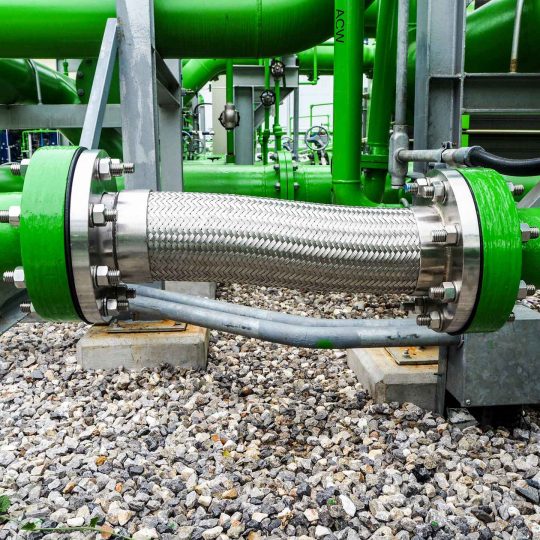

APPLICATIONS

PHISICAL PROPERTIES:

Temperature: -73°C/260°C



The innercore PTFE is in accordance with the following normatives :
UPS CLASS VI
FDA 21 CFR 177.1550 OF CORE MATERIAL
EU 10/2011
REGULATION 1935/2004

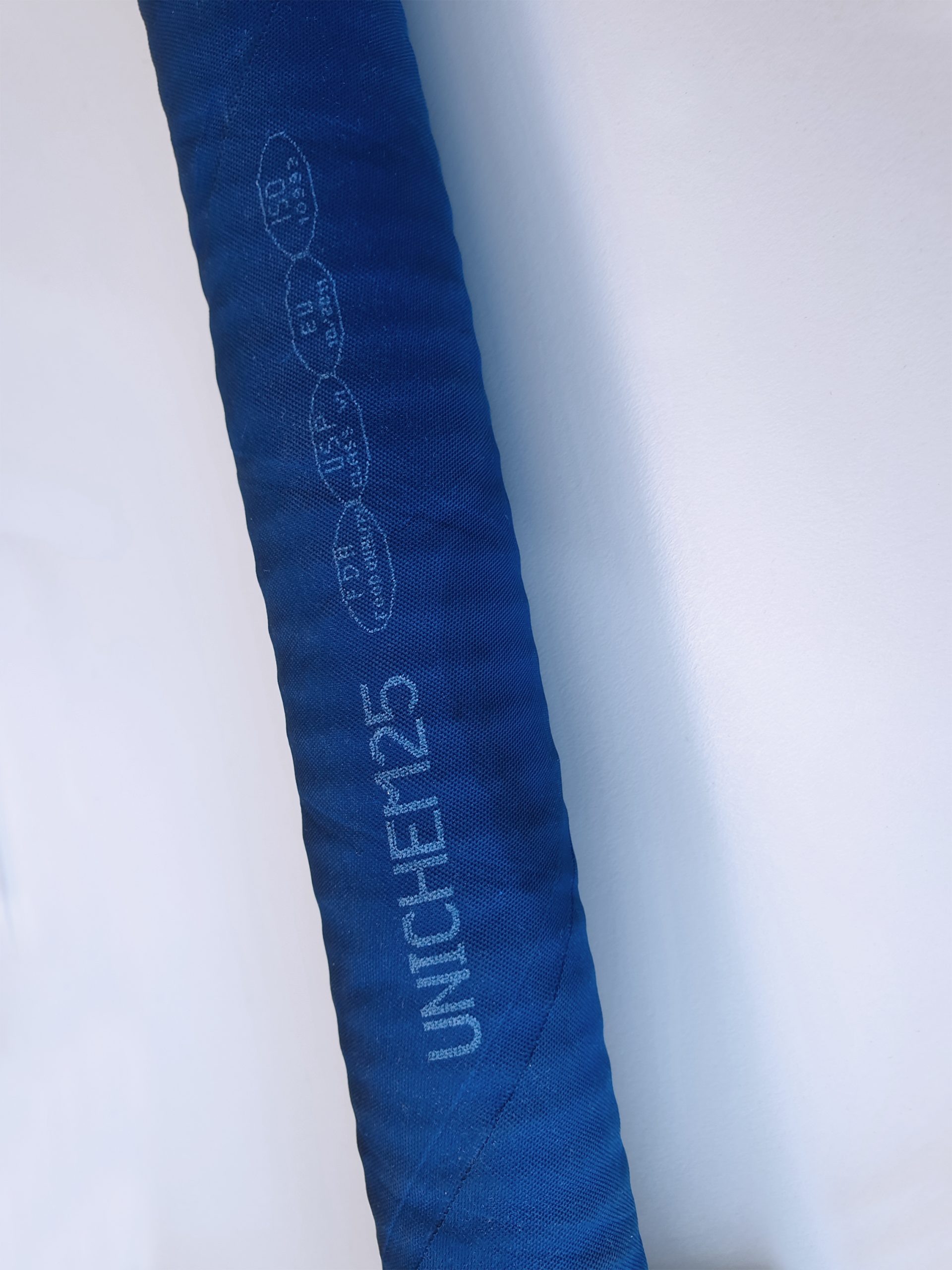

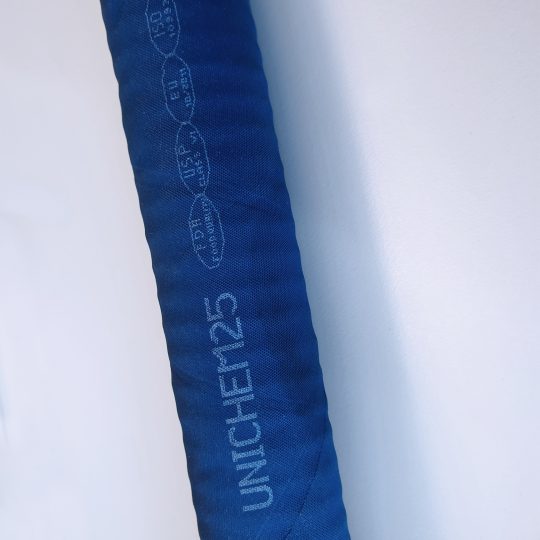

ALL THE HOSES ARE INKJET MARKED
AVAILABLE ALSO CONDUCTIVE VERSION
